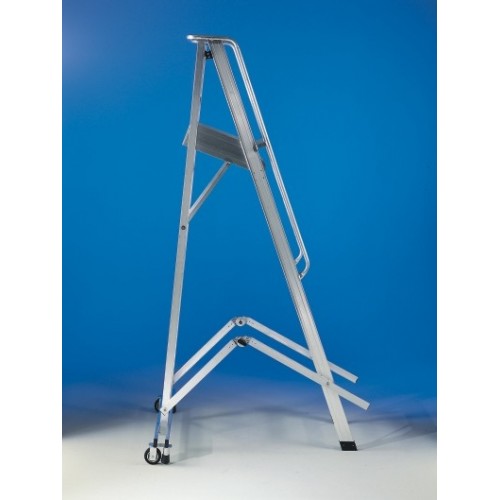

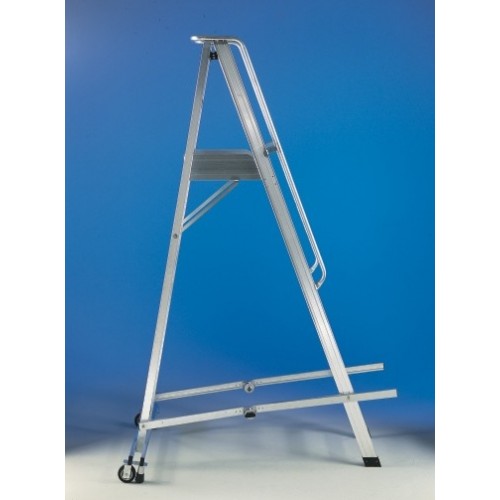

One-sided stepladder with wheels
Aluminium heavy duty folding ladder with platform, guardrail and handrail. Each step is firmly welded to the frame.
It is particularly suitable for use in warehouses, stock rooms, high access points with machinery, airports, gymnasiums and other areas where safe, guarded high level access is required.
Its wide steps, its 100-cm guardrail and its large aluminium working platform permit to work in a comfortable, safe way.

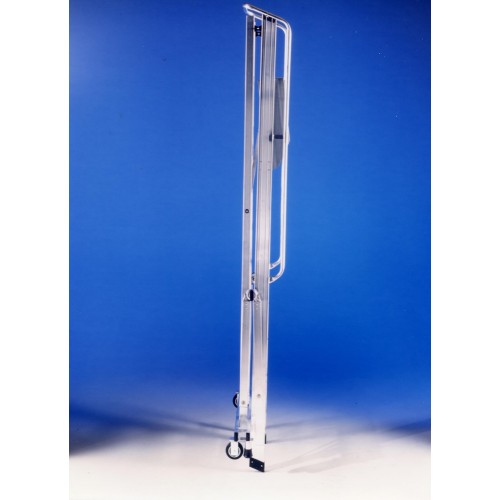

The quick positioning aluminium hinges grant total folding and compact thickness for transportation.
The braking system is automatic when the ladder is open for use and the operator climbs.
When the ladder is moved with the raising arms, the rubber feet rise allowing the two wheels (ø 125 mm) to move effortlessly on the ground.
It is tested and produced according to the European Standard EN131.
TECHNICAL FEATURES
• Frame profile 100x30 mm
• Platform capacity 150 kg
• Toeboard height 15 cm
• Platform dimensions 53x67 cm
• Front width 60 cm
• Guardrail height 100 cm
• Distance between steps 24 cm
• Non-skid step 10 cm
• Sliding wheels ø 125 mm
• No. of rungs: 4 to 15
• Platform height: 1,00 m to 3,90 m
STANDARD PARTS
• Stainless steel screws with self-locking nuts
• Reinforced anti-opening/closure arms which also raise the ladder
• Tool-tray with capacity 15 kg
• Ribbed frame and supports under the longest steps
• Ergonomic reinforced non-skid rubber feet
• Label and instructions for assembly and use
• Thermo-shrinkable plastic package with showcard
On request:
• Short stabiliser (75 cm long) for use in narrow corridors
• Castellana 4WD: kit of 4 blocking pivoting wheels Ø 80 mm
• Non-closing fixed ladder
• Protection chain
• Special sizes and structures
